SUMMARY

The Bearing keeps a comprehensive stock of disc harrow bearings, with both round, square and hexagonal bores – many with triple seals. W208PP6 W208PP9 208KP3 W208K2 W208PP5 W208PP20 W208PP8 W208K3 GW209PP8 GW208PP17 W210PP6 W210PP4 GW210PP4 W211PP3 GW211PP17 GW211PP3 W211PP5 GW216PP5 GW212PP2 GW216PP2 W208PPB13 W208PPB6 W208PPB9 GW208PPB6 W208PPB5 W208PPB8 GW208PPB8 GW208PPB5 W209PPB8 W208PPB5 GW209PPB5 GW209PPB8 W208PPB11 W208PPB12 GW208PPB17 W209PPB7 W210PPB6 W210PPB4 GW210PPB4 W211PPB3 GW211PPB6 GW211PPB3 GW211PPB17 GW211PPB11 W211PPB6 GW214PPB4 GW216PPB4 GW216PPB2

CATEGORY：

Agricultural Bearings

+86-15106825865
postmaster@hotop.fun
Message

Product Description

The Bearing keeps a comprehensive stock of disc harrow bearings, with both round, square and hexagonal bores – many with triple seals. Typical applications include Combine harvesters, balers, seeder, tillage and lawn and garden machinery.

This range of bearings for agricultural machinery complements our large stock of housed bearings units.

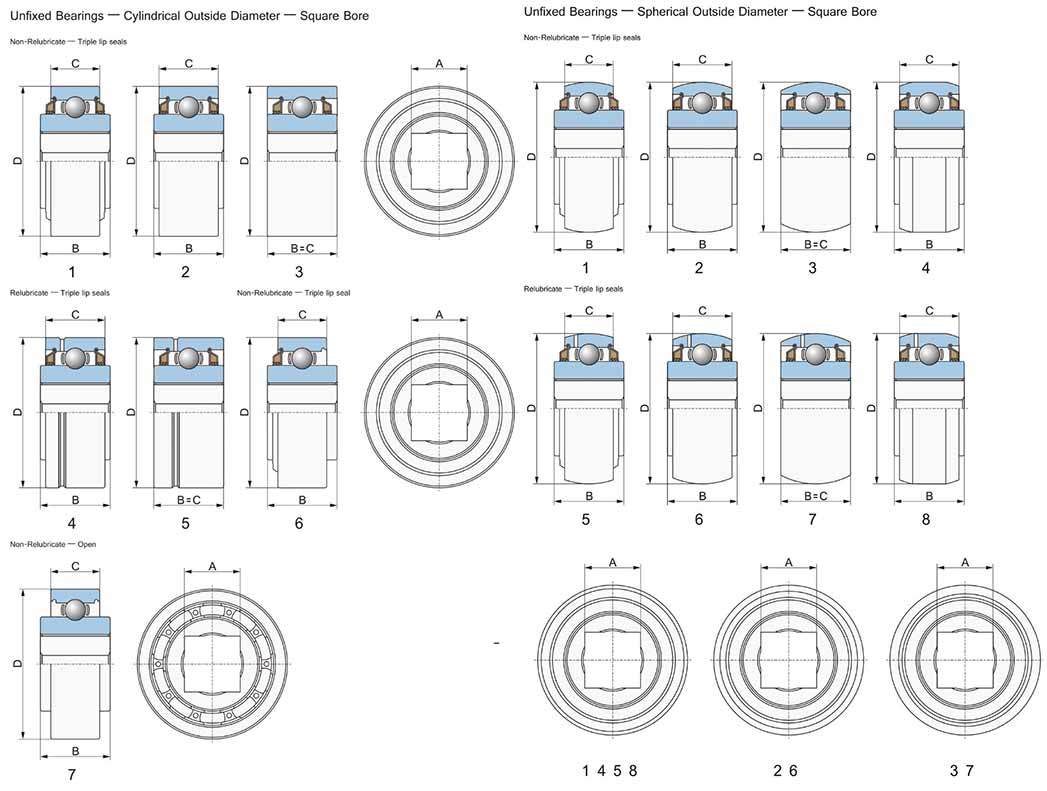

Squre Bore Cylindrical /Spherical O.D. Disc Harrow Bearings:

xq



Square bore
Bearing Number Type d mm D mm B mm C mm
W208PP6 Cylinfrical 26.162  80.000  36.525  18.000
W208PP9 Cylinfrical 26.162  80.000  36.525  30.175
208KP3 Cylinfrical 26.162  80.000  36.525  18.000
W208K2 Cylinfrical 26.162  80.000  42.875  18.000
W208PP5 Cylinfrical 29.972  80.000  36.525  18.000
W208PP20 Cylinfrical 29.972  80.000  36.525  18.000
W208PP8 Cylinfrical 29.972  80.000  36.525  30.175
W208K3 Cylinfrical 29.972  80.000  42.875  18.000
GW209PP8 Cylinfrical 32.776  85.000  36.525  22.000
GW208PP17 Cylinfrical 29.972  85.750  36.525  30.175
W210PP6 Cylinfrical 29.972  90.000  36.525  30.175
W210PP4 Cylinfrical 29.972  90.000  30.175  30.175
GW210PP4 Cylinfrical 29.972  90.000  30.175  30.175
W211PP3 Cylinfrical 38.890  100.000  33.325  33.325
GW211PP17 Cylinfrical 38.890  100.000  44.450  33.325
GW211PP3 Cylinfrical 38.890  100.000  33.325  33.325
W211PP5 Cylinfrical 38.890  101.600  44.450  33.325
GW216PP5 Cylinfrical 38.890  101.600  44.450  36.525
GW212PP2 Cylinfrical 45.680  110.000  50.800  36.525
GW216PP2 Cylinfrical 58.800  140.000  63.500  36.525
W208PPB13 Spherical 23.000  80.000  36.525  18.000
W208PPB6 Spherical 26.162  80.000  36.525  18.000
W208PPB9 Spherical 26.162  80.000  36.525  30.175
GW208PPB6 Spherical 26.162  80.000  36.525  21.000
W208PPB5 Spherical 29.972  80.000  36.525  18.000
W208PPB8 Spherical 29.972  80.000  36.525  30.175
GW208PPB8 Spherical 29.972  80.000  36.525  30.175
GW208PPB5 Spherical 29.972  80.000  36.525  21.000
W209PPB8 Spherical 32.776  85.000  36.525  18.000
W208PPB5 Spherical 32.776  85.000  36.520  30.175
GW209PPB5 Spherical 32.776  85.000  36.525  30.175
GW209PPB8 Spherical 32.776  85.000  36.525  21.000
W208PPB11 Spherical 23.000  85.750  36.525  22.000
W208PPB12 Spherical 29.972  85.750  36.525  30.175
GW208PPB17 Spherical 29.972  85.750  36.525  30.175
W209PPB7 Spherical 32.776  85.750  36.525  22.000
W210PPB6 Spherical 29.972  90.000  36.525  30.175
W210PPB4 Spherical 29.972  90.000  30.175  30.175
GW210PPB4 Spherical 29.972  90.000  30.175  30.175
W211PPB3 Spherical 38.890  100.000  33.325  30.175
GW211PPB6 Spherical 38.890  100.000  44.450  30.175
GW211PPB3 Spherical 38.890  100.000  33.325  30.175
GW211PPB17 Spherical 38.890  100.000  44.450  30.175
GW211PPB11 Spherical 38.890  100.000  44.450  33.325
W211PPB6 Spherical 38.890  103.560  44.450  36.525
GW214PPB4 Spherical 52.200  125.000  39.675  33.325
GW216PPB4 Spherical 45.680  140.000  63.500  33.325
GW216PPB2 Spherical 57.150  140.000  63.500  25.000
图片名称
图片名称

FAQ

Q

Q:Your factory how to control the quality?

A

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q

Q:Can you tell me the bearing material?

A

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q

Q:How long is your delivery time?

A

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q

Q:OEM and custom you can receive?

A

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
