Truck Wheel Hub Bearing

+
  • Truck-wheel-hub-bearing2.jpg
  • Truck-wheel-hub-bearing1.jpg
  • Truck-wheel-hub-bearing3.jpg

SUMMARY

Truck hub units, which contain two tapered roller bearings, are pre-adjusted, greased and sealed 1075408 20792439 20792440 20967828 21036050 3988774 7420792439 20967831 21021391 7420518637 7421021391 20518617 20967830 7420518617 7421021381 1801595 1801592 1801593 3434301200 4200101602 3307303000 3307303001 3434301800 503126457 36934200009 81934200320 81934200342 81934200376 81934206097 3307304300 3434301900 3434302000 1801594 81934200346 81934200377 1413785 1439070 1443078 1476945 1724482 1868087 81934200344 81934200354 149815105 149819305 149819905 179815005 833211 7184079 7184080 2994058 85103258 1408086 1400291 1905487 2996882 7179751 7183074 7183075 7189050 7189648 0159811905 0139812205 0139812305 0139819805 81934206083 81934200336 85103257 93810034 42541578 5006207845 81934200288 81934200330 81934200349 03434365000 3200200151 4200200100 4200200101 100167600 100167601 1002689 5010308616 5010566154 5010566154A 81934200337 20764313 5010439770 5010216920 7420879770 VKBA5423 VKBA5424 VKBA5408 BT20130A VKBA5416 VKBA5314 BTH0018A BTH0018B BTH0022 BTH0055 VKBA5412 VKBA5552 BTH0054 VKBA5397 BTH0025 BTH0053 VKBA5415 VKBA3553 BTF0110 BTF0021 VKBA5377 VKBA5549 VKBA5407 VKBA5411 BTF0074A VKBA5316 BTF0045 VKBA5308 BTF0034 566425.H195 800792 566426.H195 581079 566427.H195 805165A 566834.H195 566074.H195 566193.H195 803904 569868.H195 803750B 566864.H195 570530.H195 808918 566283.H195 805008 804162A 571762.H195 201037 80503A.H195 805011C 805012.06.H195 201059 201050 803194A 805092C 577822 713690850 801974AE.H195 201012 564734.H195 F-805531 201042 201082 201043 201044 F200015 SET1311 F200010 F200006 F200009 503809 805479 805415A 805958 F200007 F200005 F15097 SET1231 F15126 SET1237 F15122 F15120 DU6108-8 F15125 SET1262 F15127 SET1263 R140.15 F300006 F300005 BTF0056EB BTF068 HDS002 HUR056 HDS001 HUR040-10

CATEGORY：

Wheel Hub Bearings

+86-15106825865
postmaster@hotop.fun
Message

Product Description

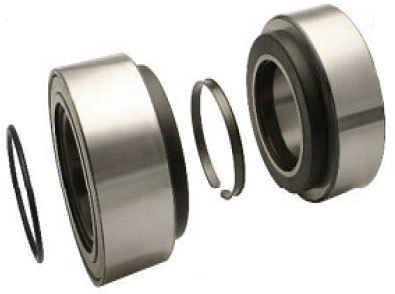

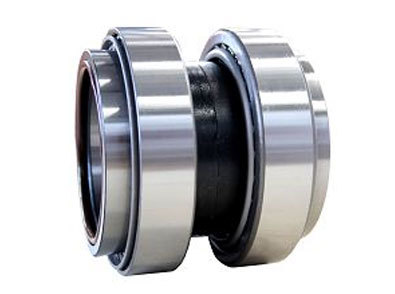

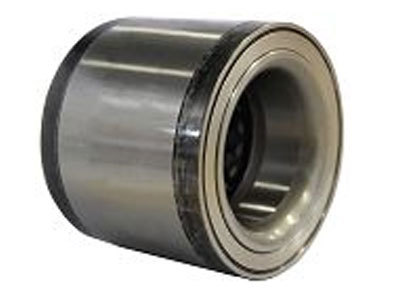

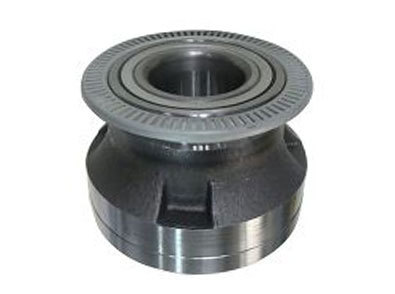

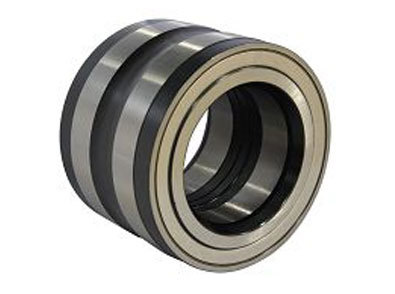

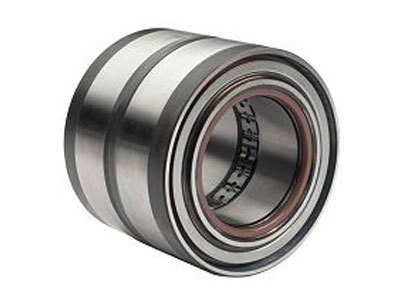

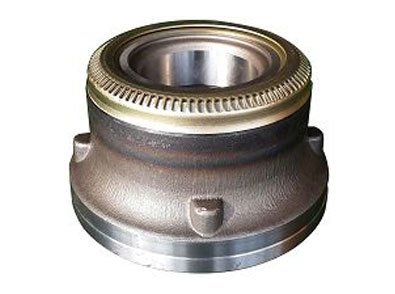

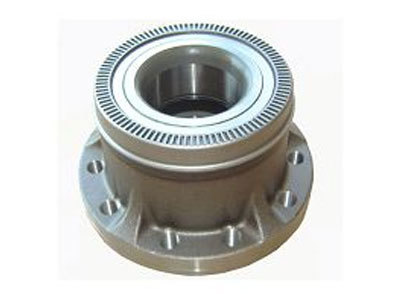

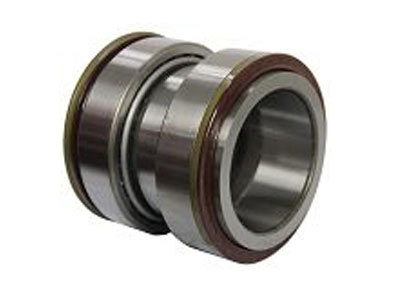

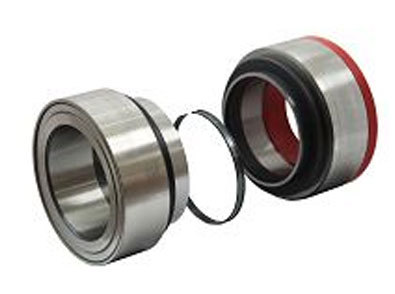

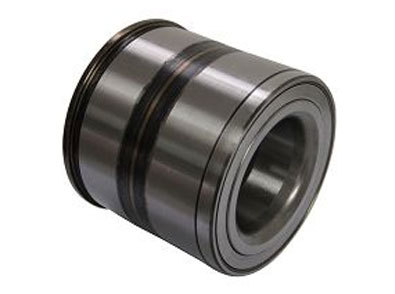

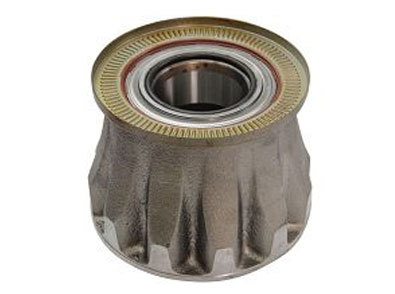

Truck hub units, which contain two tapered roller bearings, are pre-adjusted, greased and sealed at the factory in order to simplify installation. The wheel bearing units are intended for use in truck, trailer and buses. They are designed to withstand typical harsh operating conditions and require less maintenance than the conventional wheel bearing sets they replace. Some variants have an integrated impulse ring which makes some variants suitable for use with anti-lock braking systems. The units can also save time and cost during brake maintenance.

OEM NO. SKF NO. FAG NO. REF NO. Dimensions(mm) Wheel Type Picture Application
d D B
1075408 20792439    20792440  20967828  21036050   3988774       7420792439 VKBA5423 566425.H195  800792   93.8 148 135 Rear A xq VOLVO FE/ FH/ FH 12/ FH 16/ FM/ FM 7/ FM 9/ FM 12/ FL6/ FL7/ FL10/ FL12/ NH12/ 7700/ 8500/ 8700/ 9700/ 9900/ B6
RENAULT  TRUCKS PREMIUM 2/ MAGNUM/ KERAX
DAF XF 105
20967831      21021391  7420518637 7421021391    566426.H195 581079   68 125 115 Front A xq VOLVO FE/ FH/ FH 12/ FH 16/ FM/ FM 7/ FM 9/ FM 12/ NH12/ 7700/ 8500/ 8700/ 9700/ 9900
RENAULT  TRUCKS PREMIUM 2/ MAGNUM/ KERAX
20518617     20967830     7420518617 7421021381    VKBA5424 566427.H195 805165A F200015 SET1311 58 110 115 Front A xq VOLVO FE/ FH/ FH 12/ FH 16/ FM/ FM 9/ FM 12
RENAULT  TRUCKS PREMIUM 2/ MAGNUM
1801595   566834.H195 F200010 70 124.7 110.03  Front A xq DAF CF65/ CF75/ CF85/ LF55/ XF95/ XF105
1801592   566074.H195 F200006 70 125 114 Front A xq DAF CF65/ CF75/ CF85/ LF55/ XF95/ XF105
1801593   566193.H195 F200009 80 138 130 Front A xq DAF CF75/ CF85/ XF95/ XF105
3434301200 4200101602   803904 503809 120 175 123 Rear A xq SAF SKRS 11019 K/ SKRZ 9019 K/ SK 1000 ET0/ SKRZ 9042/20 10 HOLES 1995 AFTER MODEL
3307303000 3307303001
3434301800		   569868.H195 805479 805415A 82 138 110 Rear A xq SAF SKRLB 9019/ SKRLB 9022 10 HOLES WITH BRAKE DISC
503126457
36934200009
81934200320
81934200342 81934200376 81934206097		 VKBA5408 BT20130A 803750B   105 160 140 Rear A xq MAN TGA/ TGM/ TGS/ TGX/ M2000/ NL/ NG/ NU/ SL/ UL/ LION STAR/ LION COACH/ LION CITY/ HOCL
MERCEDES CITARO/ CONECTO
NEOPLAN CITYLINER/ EUROLINER/ STARLINE
VOLVO 7700/ 8500/ 8700
BOVA FUTURA/ LEXIO/ MAGIG/ SINERGY
    566864.H195 805958 70 124.7 122 Front A xq DAF XF 95 After 2006 MODELS
3307304300 3434301900
3434302000		   570530.H195  808918   88 138 120   A xq SAF
1801594   566283.H195 805008 F200007 100 148 135 Rear A xq DAF DAF CF65/ CF75/ CF85/ LF55/ XF95/ XF105
81934200346 81934200377 VKBA5416 804162A F200005 110 170 140 Rear A xq MAN TGA/ TGM/ TGS/ TGX/ F2000
1413785  1439070 1443078  1476945          1724482        1868087 VKBA5314 BTH0018A BTH0018B  571762.H195         201037 F15097 SET1231 68/ 68.2 127/132 115 Front B xq SCANIA SERIES P, G, R, T / SERIES 2, 3, 4
FORD FOCUS II (DA), FOCUS II STATION WAGON (DA)
DAF F 1500
MAN L 2000
MERCEDES SK
81934200344  81934200354  149815105   149819305 149819905 179815005 BTH0022  BTH0055 VKBA5412 VKBA5552  80503A.H195   82 140 115 Rear B xq MAN TGL/ TGM/ FOCL
MERCEDES ACTROS/ ACTROS MP2 MP3/ AXOR/ AXOR 2
833211 7184079 7184080 2994058 85103258 BTH0054 805011C F15126 SET1237 82 140 110   B xq IVECO EUROCARGO
1408086 1400291 1905487
2996882
7179751
7183074
7183075
7189050
7189648		 VKBA5397 BTH0025 BTH0053 805012.06.H195      201059 F15122 90 160 125 Rear B xq IVECO EUROTECH MT MP MH/ EURPSTAR/ EUROCARGO/ STRALIS
IRISBUS EURORIDER
DAF LF55
0159811905   201050 F15120 DU6108-8 60 108 75 Front B xq VOLVO FL6
MERCEDES ACTROS MP2 MP3/ ATEGO/ ATEGO2/ AXOR 2
0139812205 0139812305 0139819805    803194A               F15125 SET1262 78 130 90 Rear B xq MERCEDES ATEGO/ ATEGO2/ TOURINO (O 510)
81934206083  81934200336 85103257 VKBA5415 805092C F15127 SET1263    78 130 90.5 Rear B xq IVECO EuroCargo
VOLVO FL6
MAN TGL/ TGM/ L2000
93810034 VKBA3553 577822 713690850 R140.15 F300006 45 120 85 Front C xq IVECO DAILY I FLATBED/ CHASSIS, BOX BODY/ ESTATE, DUMPTRUCK
42541578 5006207845 81934200288 81934200330 81934200349 BTF0110 BTF0021 VKBA5377 801974AE.H195      201012 F300005 70 196 139.5   C xq IVECO CITYCLASS/ EUROPOLIS
MAN TGA/ TGM/ TGX/ TGS/ NL/ NG/ NU/ UL/ LION S STAR/ LION S COACH/ E 2000/ F 2000/ M 2000 L/ M 2000 M
03434365000     3200200151
4200200100
4200200101
100167600
100167601
1002689		 VKBA5549 564734.H195 BTF0056EB 82 196 113.8 Rear C xq SAF INTEGRAL/ SKRB 9022H 9022K01/ SKRLB 9019K 9019KI 9019W 9022H 9022K 9022K01 9022W
5010308616 VKBA5407 F-805531                BTF068 60 168 102 Front C xq RENAULT TRUCKS MIDLUM
5010566154 5010566154A   201042 HDS002 HUR056 50 140 95 Front C xq RENAULT TRUCKS MIDLUM
81934200337 VKBA5411 BTF0074A 201082   55 145 100   C xq MAN TGL/ TGM/ FOCL/ L2000/ M2000L
20764313 5010439770 VKBA5316 BTF0045 201043 HDS001 HUR040-10 70 194 112 Front C xq RENAULT TRUCKS PREMIUM/ MAGNUM/ KERAX/ MIDLUM
5010216920
7420879770		 VKBA5308 BTF0034 201044   65 194 113 Front C xq RENAULT TRUCKS PREMIUM/ MAGNUM/ KERAX/ MAXTER/ MAJOR
图片名称
图片名称

FAQ

Q

Q:Your factory how to control the quality?

A

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q

Q:Can you tell me the bearing material?

A

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q

Q:How long is your delivery time?

A

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q

Q:OEM and custom you can receive?

A

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
