CRBH Series Crossed Roller Bearing

SUMMARY

CRBH type crossed roller bearing comes with an integrated inner/outer ring structure, which can be used for both inner-ring and outer-ring rotation. CRBH 208 A CRBH 258 A CRBH 3010 A CRBH 3510 A CRBH 4010 A CRBH 4510 A CRBH 5013 A CRBH 6013 A CRBH 7013 A CRBH 8016 A CRBH 9016 A CRBH 10020 A CRBH 11020 A CRBH 12025 A CRBH 13025 A CRBH 14025 A CRBH 15025 A CRBH 20025 A CRBH 25025 A CRBH 208 AUU CRBH 258 AUU CRBH 3010 AUU CRBH 3510 AUU CRBH 4010 AUU CRBH 4510 AUU CRBH 5013 A UU CRBH 6013 A UU CRBH 7013 A UU CRBH 8016 A UU CRBH 9016 A UU CRBH 10020 A UU CRBH 11020 A UU CRBH 12025 A UU CRBH 13025 A UU CRBH 14025 A UU CRBH 15025 A UU CRBH 20025 A UU CRBH 25025 A UU

CATEGORY：

CROSSED ROLLER BEARINGS

+86-15106825865

postmaster@hotop.fun

Message

Product Description

CRBH type crossed roller bearing comes with an integrated inner/outer ring structure, which can be used for both inner-ring and outer-ring rotation. CRBH type are lightweight, compact bearings with the thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

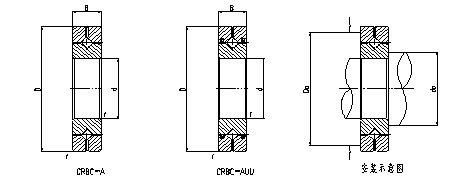

Bearing Number		Dimensions
1	2	d mm	D mm	B mm
CRBH 208 A	CRBH 208 AUU	20	36	8
CRBH 258 A	CRBH 258 AUU	25	41	8
CRBH 3010 A	CRBH 3010 AUU	30	55	10
CRBH 3510 A	CRBH 3510 AUU	35	60	10
CRBH 4010 A	CRBH 4010 AUU	40	65	10
CRBH 4510 A	CRBH 4510 AUU	45	70	10
CRBH 5013 A	CRBH 5013 A UU	50	80	13
CRBH 6013 A	CRBH 6013 A UU	60	90	13
CRBH 7013 A	CRBH 7013 A UU	70	100	13
CRBH 8016 A	CRBH 8016 A UU	80	120	16
CRBH 9016 A	CRBH 9016 A UU	90	130	16
CRBH 10020 A	CRBH 10020 A UU	100	150	20
CRBH 11020 A	CRBH 11020 A UU	110	160	20
CRBH 12025 A	CRBH 12025 A UU	120	180	25
CRBH 13025 A	CRBH 13025 A UU	130	190	25
CRBH 14025 A	CRBH 14025 A UU	140	200	25
CRBH 15025 A	CRBH 15025 A UU	150	210	25
CRBH 20025 A	CRBH 20025 A UU	200	260	25
CRBH 25025 A	CRBH 25025 A UU	250	310	25

FAQ

Q:Your factory how to control the quality?

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q:Can you tell me the bearing material?

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q:How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q:OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
