SX Series Crossed Roller Bearing

SUMMARY

SX crossed roller bearing application: It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX011880 SX0118/500

CATEGORY：

CROSSED ROLLER BEARINGS

+86-15106825865

postmaster@hotop.fun

Message

Product Description

SX crossed roller bearing application:

It is suitable for cases where the space is limited, where the high rigidity and hig rotation accuracy is required. Such as joint rotation parts of industrial robots, rotary tables of machining centers, precision rotary tables, medical equipment, calculators, and IC manufacturing equipment.

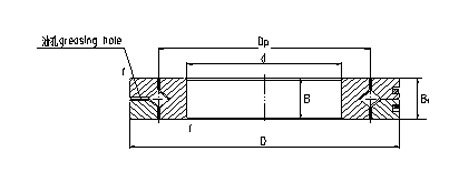

Bearing Number	Dimensions
Bearing Number	d mm	Dmm	Roller pitch circle diameter dp (mm)	B mm
SX011814	70	90	80	10
SX011818	90	115	102	13
SX011820	100	125	112	13
SX011824	120	150	135	16
SX011828	140	175	157	18
SX011832	160	200	180	20
SX011836	180	225	202	22
SX011840	200	250	225	24
SX011848	240	300	270	28
SX011860	300	380	340	38
SX011868	340	420	380	38
SX011880	400	500	450	46
SX0118/500	500	620	560	56

FAQ

Q:Your factory how to control the quality?

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q:Can you tell me the bearing material?

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q:How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q:OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
