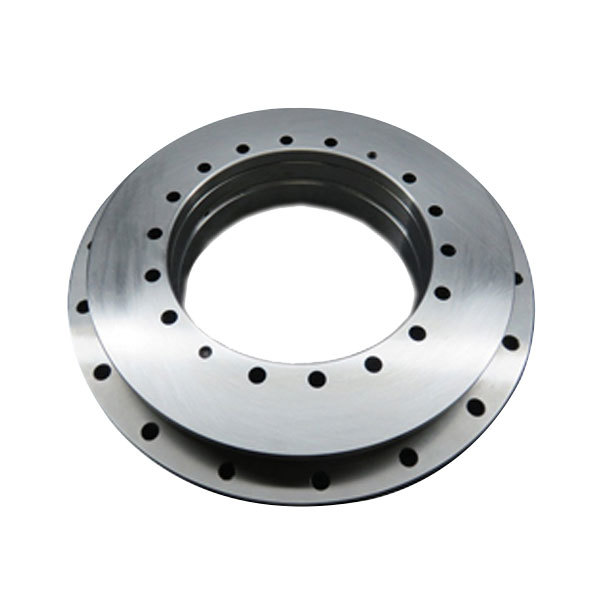

YRT Rotary Table Bearing

SUMMARY

Axial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. YRT50 YRT80 YRT100 YRT120 YRT150 YRT180 YRT200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 YRT850 YRT950 YRT1030 YRT1200

CATEGORY：

CROSSED ROLLER BEARINGS

+86-15106825865

postmaster@hotop.fun

Message

Product Description

Axial/radial bearings are double direction axial bearings for screw mounting, with a radial guidance bearing. These ready-to-fit,greased units are very rigid, have high load carrying capacity and run with particularly high accuracy. They can support radial forces, axial forces from both directions and tilting moments free from clearance. The bearings are available in several series. For applications with low speeds and small operating durations, such as indexing tables and swivel type milling heads, the most suitable bearings are generally series YRT and YRTC.

YRT rotary table bearings

Bearing Number	inner diameter mm	outer diameter mm	hight mm
YRT50	50	126	30
YRT80	80	146	35
YRT100	100	185	38
YRT120	120	210	40
YRT150	150	240	40
YRT180	182	280	43
YRT200	200	300	45
YRT260	260	385	55
YRT325	325	450	60
YRT395	395	525	65
YRT460	460	600	70
YRT580	580	750	90
YRT650	650	870	122
YRT850	850	1095	124
YRT950	950	1200	132
YRT1030	1030	1300	145
YRT1200	1200	1490	164

FAQ

Q:Your factory how to control the quality?

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q:Can you tell me the bearing material?

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q:How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q:OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
