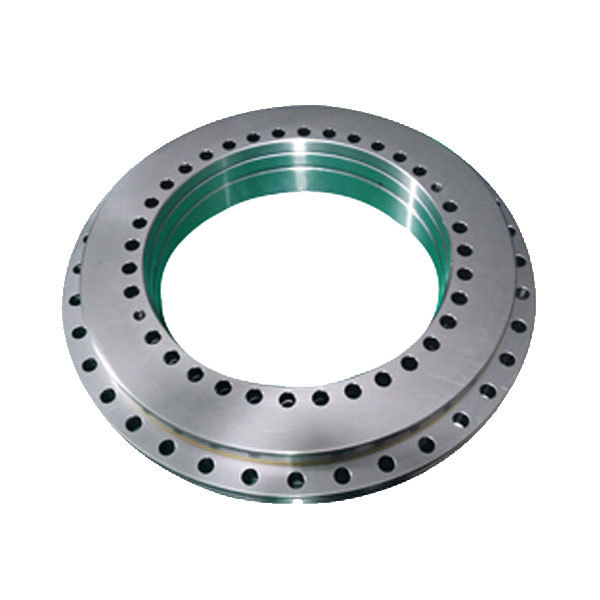

YRTC Rotary Table Bearing

+
  • Rotary-Table-Bearing3.jpg

SUMMARY

Crossed roller bearings receive loads in all directions including radial, axial and moment loads,because they are with Cross-Roller Ring, YRTC100 YRTC120 YRTC150 YRTC180 YRTC200 YRTC260 YRTC325 YRTC395 YRTC460 YRTC580 YRTC650 YRTC850 YRTC1030

CATEGORY:

CROSSED ROLLER BEARINGS


Message

Product Description

Crossed roller bearings receive loads in all directions including radial, axial and moment loads,because they are with Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. it is optimal for applications such as joints and swiveling units of industrial robots,medical equipment, rotary units of manipulators, swiveling tables of machining centers,measuring instruments and precision rotary tables.

Features:

Large Load Capacity

High Rotation Accuracy

Easy Handling

Skewing Prevention

Kenwoth Bearing supply wide range of crossed roller bearings:

YRT Rotary Table Bearing,

RA series Crossed Roller Bearing,

RB series Crossed Roller Bearing,

RE series Crossed Roller Bearing,

RU series Crossed Roller Bearing,

SX series Crossed Roller Bearing,

CRBH series Crossed Roller Bearing,

XSU series Crossed Roller Bearing,

XR/JR series Crossed Roller Bearing,

CRBS slim thin section crossed roller bearing,

CRBF full compeletment crossed roller bearings.

YRTC Rotary Table Bearing

xq xq

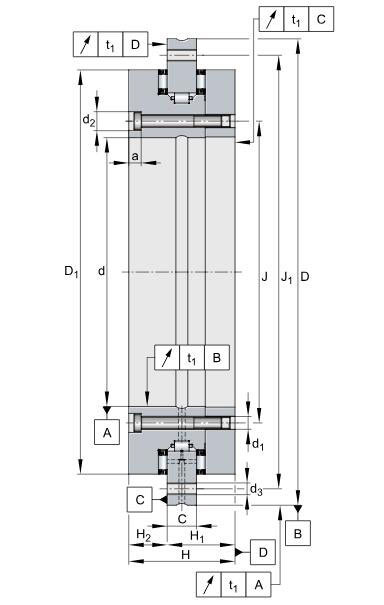

Bearing Number Dimensions mm
d D H H1 H2 C
YRTC100 100 185 30 25 13 12
YRTC120 120 210 40 26 14 12
YRTC150 150 240 40 26 14 12
YRTC180 180 280 43 29 14 15
YRTC200 200 300 45 30 15 15
YRTC260 260 385 55 36.5 18.5 18
YRTC325 325 450 60 40 20 20
YRTC395 395 525 65 42.5 22.5 20
YRTC460 460 600 70 46 24 22
YRTC580 580 750 90 60 30 30
YRTC650 650 870 122 78 44 34
YRTC850 850 1095 124 80.5 43.5 37
YRTC1030 1030 1300 145 92.5 40
图片名称
图片名称

FAQ


Q:Your factory how to control the quality?

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q:Can you tell me the bearing material?

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q:How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q:OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
