CRBF Series Full Compeletment Crossed Roller Bearing

SUMMARY

CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. CRBF108AT CRBF2012AT CRBF2512AT CRBF3515AT CRBF5515AT CRBF8022AT CRBF8022A CRBF8022AD CRBF9025AT CRBF9025A CRBF9025AD CRBF11528AT CRBF11528A CRBF11528AD CRBF108ATUU CRBF2012ATUU CRBF2512ATUU CRBF3515ATUU CRBF5515ATUU CRBF8022ATUU CRBF8022AUU CRBF8022ADUU CRBF9025ATUU CRBF9025AUU CRBF9025ADUU CRBF11528ATUU CRBF11528AUU CRBF11528ADUU

CATEGORY：

CROSSED ROLLER BEARINGS

+86-15106825865

postmaster@hotop.fun

Message

Product Description

CRBF face mount crossed roller bearing has a compact inner and outer ring, so it can provide high stiffness. Bedides, bearings performance is minimally affected by the mounting procedure. And with mounting holes on the inner and outer ring end face. the CRBF crossed roller bearing can fixed to the related parts directly, even without the housing or fixing plate.

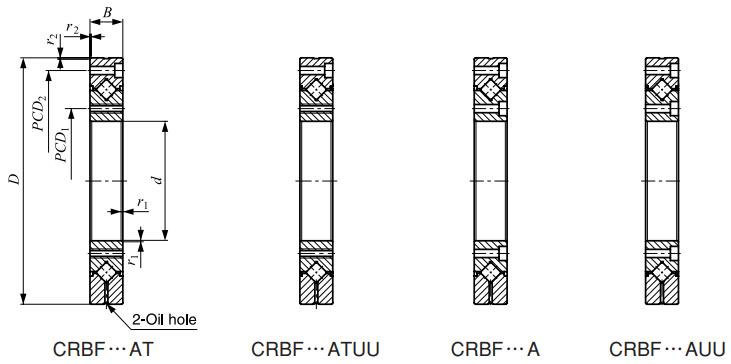

Bearing Model Number		Dimensions
Open Type	Sealed Type	d mm	D mm	B mm
CRBF108AT	CRBF108ATUU	10	52	8
CRBF2012AT	CRBF2012ATUU	20	70	12
CRBF2512AT	CRBF2512ATUU	25	80	12
CRBF3515AT	CRBF3515ATUU	35	95	15
CRBF5515AT	CRBF5515ATUU	55	120	15
CRBF8022AT	CRBF8022ATUU	80	165	22
CRBF8022A	CRBF8022AUU	80	165	22
CRBF8022AD	CRBF8022ADUU	80	165	22
CRBF9025AT	CRBF9025ATUU	90	210	25
CRBF9025A	CRBF9025AUU	90	210	25
CRBF9025AD	CRBF9025ADUU	90	210	25
CRBF11528AT	CRBF11528ATUU	115	240	28
CRBF11528A	CRBF11528AUU	115	240	28
CRBF11528AD	CRBF11528ADUU	115	240	28

FAQ

Q:Your factory how to control the quality?

A:All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

Q:Can you tell me the bearing material?

A:We have chrome steel GCR15, stainless steel, ceramics and other materials.

Q:How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

Q:OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
